Configure analysis filters

You can add one or more filters to an analysis to specify the cases you want to examine in that analysis.

An analysis filter is automatically applied to all apps added to the analysis. By default, an analysis filter is hidden and locked in the analysis. The analysis filter is hidden, that means the filter is displayed only in the Filters panel, but not in the header of an analysis. The analysis filter is locked, that means you cannot select the values of the filter in the analysis. However, you can display an analysis filter and make the filter values selectable in the analysis. For more details, see the Combining filters chapter.

Procedure. Procedure

  1. Open a project.

  2. Move the mouse pointer over an analysis in the Project panel.

  3. Click the ... More options icon.

  4. Click filter Configure filter. The Configure analysis filter dialog opens. If you have already configured project filters, these filters are also displayed here. Project filters are automatically applied to all child analyses. You can edit the project filters only in the Configure project filter dialog.

    Example

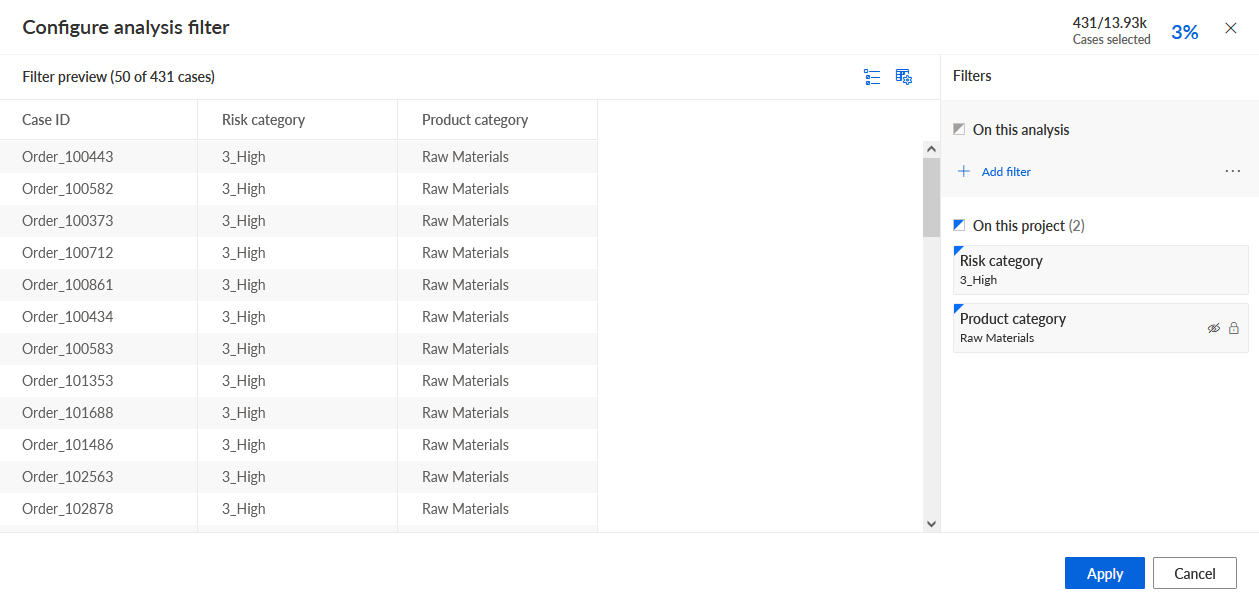

    The Risk category and Product category filters were already created for the parent project and are displayed here.

    Configure analysis filter

  5. Click + Add filter. The corresponding dialog opens.

    Add filter

  6. Select a filter method for the analysis filter. A corresponding editor opens.

  7. Define the filter condition.

    You created an analysis filter. The filter is added to the analysis filter list, which displays a preview of the filtered cases.

    Example

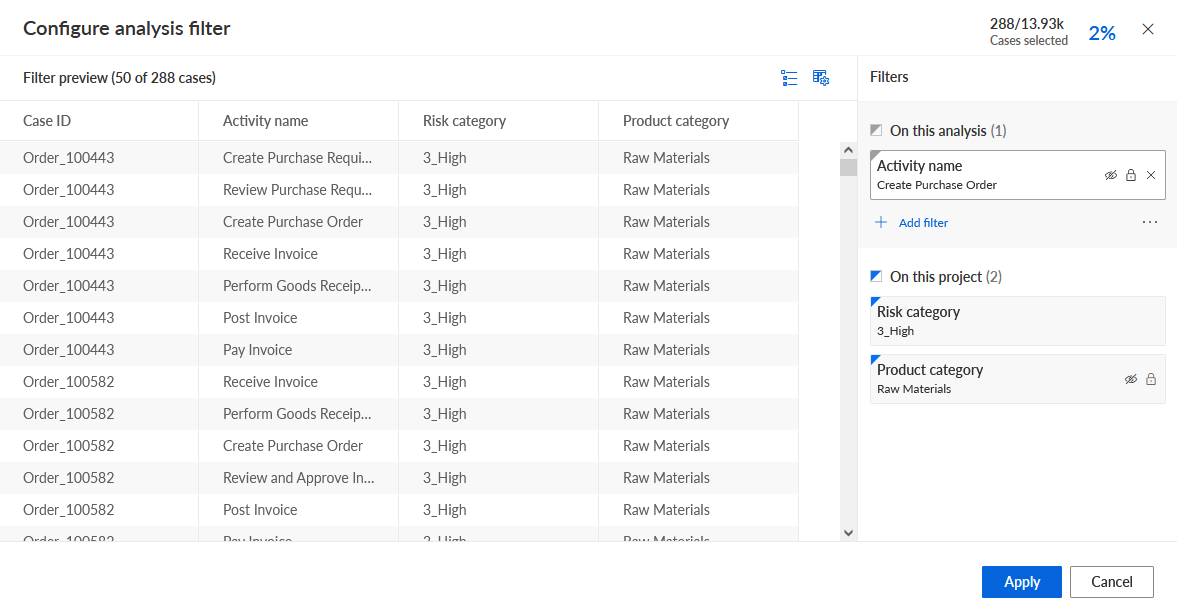

    In addition to the Risk category and Product category project filters, the Activity name filter is added to the analysis.

    Configure analysis filter

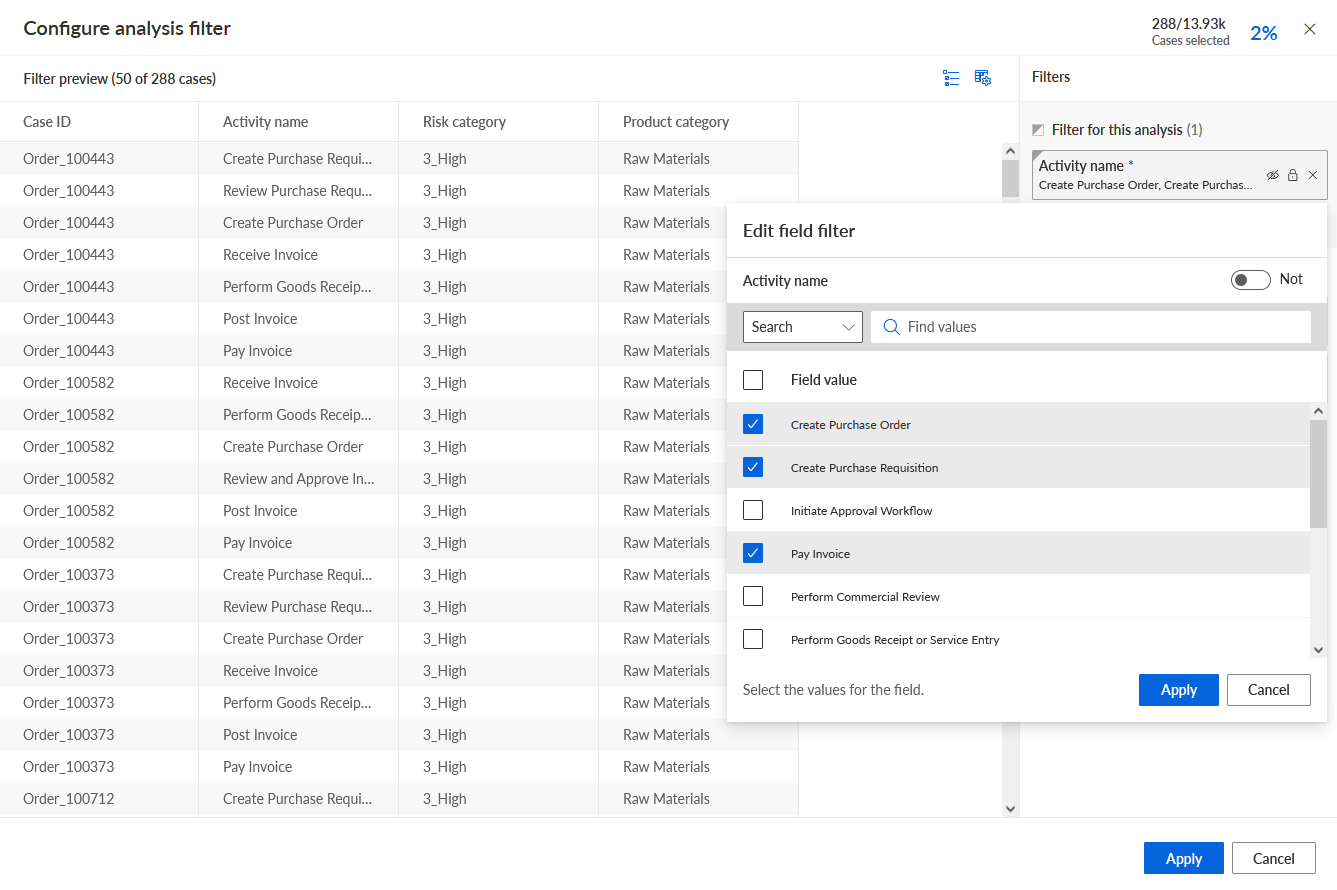

  8. To edit the filter values, click a filter in the Filters panel, specify the values to filter, and click Apply.

    Example

    Edit analysis filter

  9. To display an analysis filter in the analysis, click the Hide Hidden icon of the relevant filter in the Filters panel. The icon changes to view Displayed. The project filter is displayed in the analysis header and the Filter panel.

  10. To make the filter values selectable in the analysis, click the Locked Locked icon of the relevant filter in the Filters panel. The icon changes to Unlocked Unlocked.

  11. Click Apply.

You have configured filters for the selected analysis.

To remove an analysis filter, click the x Remove icon of the relevant filter in the Filters panel. To remove all filters, click the ... More options icon -> Clear all filters in the Filters panel.
