Get help for ARIS Process Mining functions and services

Configure project filters

You can add one or more filters to a project to narrow down the cases you want to examine in that project.

A project filter is automatically applied to all analyses created for the project. By default, a project filter is hidden and locked in a project analysis. The project filter is hidden, that means the filter is displayed only in the Filters panel, but not in the header of an analysis. The project filter is locked, that means you cannot select the values for the project filter in an analysis. However, you can display a project filter and make the filter values selectable in a project analysis. For more details, see the Combining filters chapter.

Procedure. Procedure
  1. Open a project.

  2. Click administration Configure at the bottom of the Project panel.

  3. Click filter Configure filter. The corresponding dialog opens.

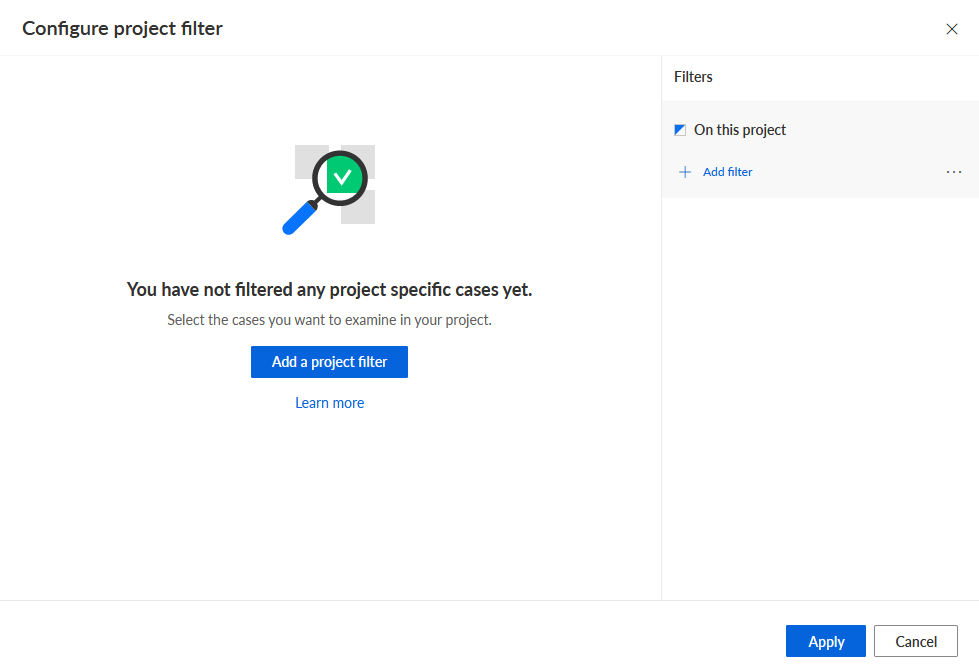

    Example

    No filter has been created for the project yet.

    Configure project filter
  4. Click Add filter. The corresponding dialog opens.

    Add filter
  5. Select the filter method to specify a filter. A corresponding editor opens.

  6. Define the filter condition.

    You created a project filter. The filter is added to the project filter list, which displays a preview of the filtered cases.

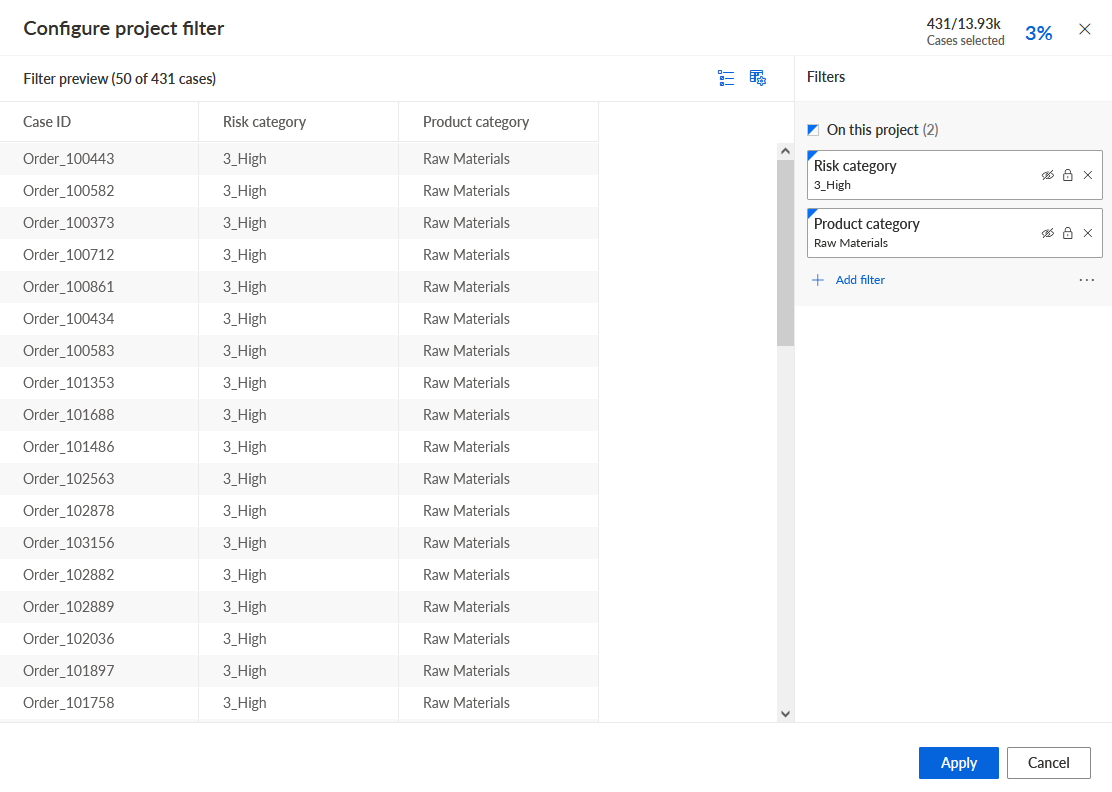

    Example

    The Risk category and Product category filters have been added to the project.

    Project filters

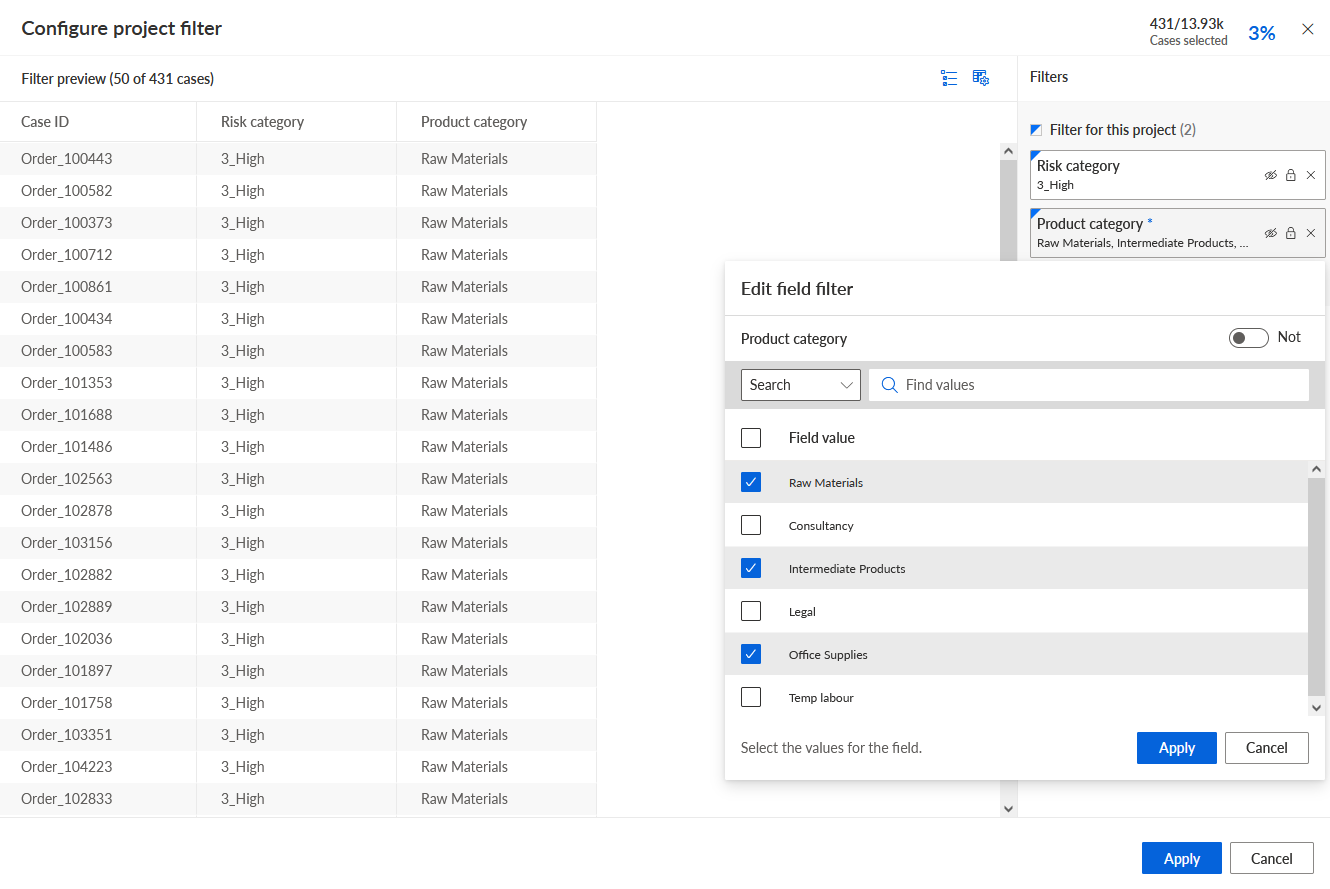

  7. To edit the filter values, click a filter in the Filters panel, specify the values to filter and click Apply.

    Example

    Edit filter values
  8. To display a project filter in the child analysis, click the Hide Hidden icon of the relevant filter in the Filters panel. The icon changes to view Displayed. The project filter is displayed in the analysis header and the Filter panel.

  9. To make the filter values selectable in the child analysis, click the Locked Locked icon of the relevant filter in the Filters panel. The icon changes to Unlocked Unlocked.

  10. Click Apply.

You have configured filters for the selected project.

To remove a project filter, click the x Remove icon of the relevant filter in the Filters panel. To remove all filters, click the ... More options icon -> Clear all filters in the Filters panel.
