SAP user
SAP users must have the following privileges to use Process Extractor:
General Remote Function Call (RFC) privileges
CPIC authorization
Unlimited access privilege for the /SOFWAG/MINING_V2 development class, and /SOFWAG/RFC_READ_TABLE_V2 function modules contained in the development class.
Access privilege for RFC_METADATA function group.
Additional privileges depend on the version of the SAP system (see examples below) and on the version of the SAP Java Connector (JCo).
The user needs read privileges for all tables specified in the extraction configuration in ARIS Process Mining. The user also requires read privileges for the tables DD02L, DD02T, DD03L, DD03T, DD04T. The read privilege for these tables is necessary because Process Extractor needs to read the meta data of the tables and table fields. Below are two examples of this configuration with privileges to read all tables. One applies to S/4 HANA.
Using the su02 SAP transaction, you can view and modify the privilege configurations and users assigned to a role. Use the su01 transaction to display the profiles assigned to a user.

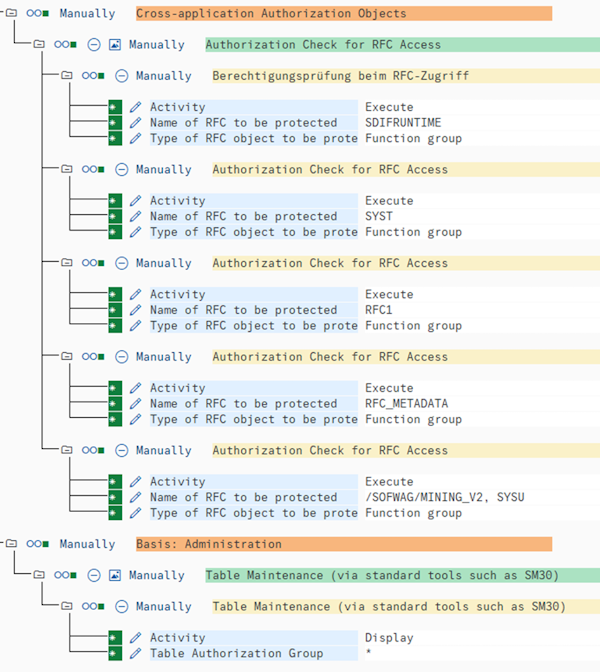

The figure below illustrates an example configuration in the SAP administration component. (The example does not apply to S/4 HANA.)

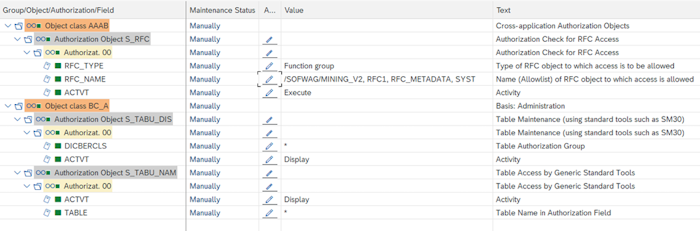

The figure below illustrates an authorization example for S/4 HANA.
