Create an SAP extraction

You must create an extraction for each document item to extract from the SAP source system.

Example 210.

Create a new extraction for each document item Purchase requisition item and Purchase order item.



Prerequisites

A system integration for an SAP system is created.

A connection to an SAP system is created.

Procedure. Procedure

  1. Open a data set, for example, the Purchase to Pay data set.

  2. Click Extractions in the Data set panel. The Extraction section opens.

  3. Click Add extraction. The Add SAP/JDBC extraction dialog opens.

    1. Specify a name for the new SAP extraction, for example, PURCHASE_REQUISITION_ITEM. The name must be unique.

    2. You can specify a namespace for the extraction. By default, the extraction name and namespace are the same, but you can specify a different namespace. The namespace must be unique.

      Note that "_ARIS" is not allowed as a namespace.

    3. Select an SAP connection in the Connection drop-down menu.

    4. Click Add connection.

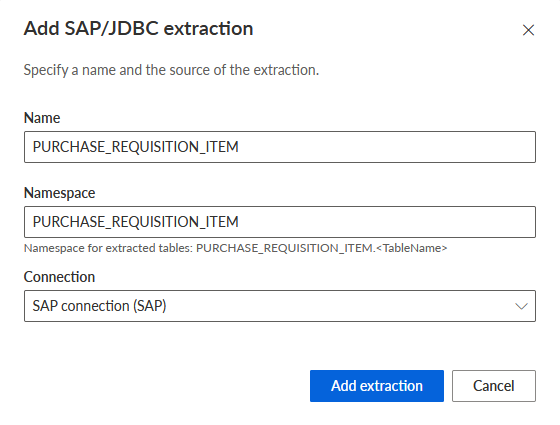

      Add SAP extraction

  4. Create an additional extraction named PURCHASE_ORDER_ITEM in the same way.

The SAP extractions are created. The new extractions are available in the Extractions list. The list also shows possible errors that occurred during the last data extraction.

Example

Example 211.

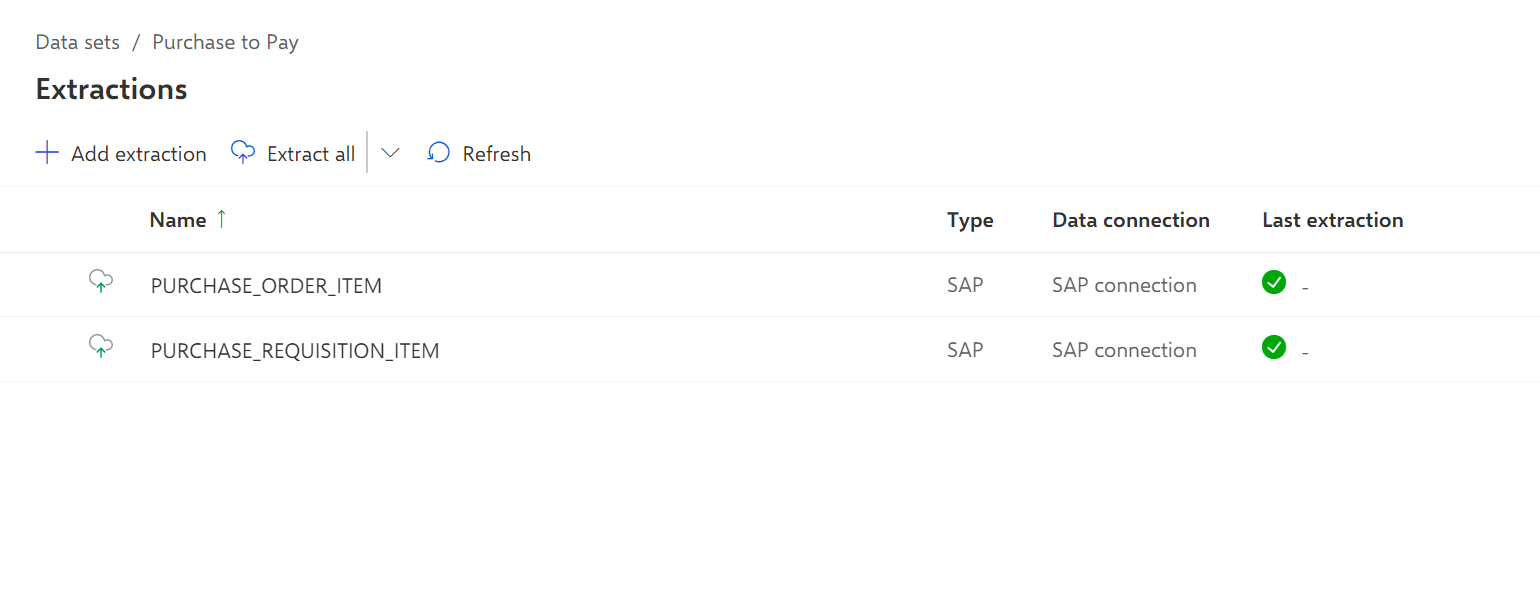

Extraction list
